Introducing the robust Intrinsically Safe Handheld Computer The Honeywell Dolphin CT60 is certified for use in hazardous situations according to ATEX Zone 2/22, Class I, II, Division II, and Class III handheld computer. Approvals include IECEx, FCC, GCF, CB Safety, and Bluetooth SIG. Built on the Mobility Edge platform, the CT60 mobile computer enables real-time networking, sophisticated data gathering, and future-proof investment protection.
The CT60 mobile computer provides an integrated, repeatable, and scalable strategy built on a common hardware and software platform – liberating companies from today’s integration and technology limits without losing enterprise security, reliability, performance, or management capabilities.
Customers can speed provisioning, certification, and deployment across the company using the CT60 mobile computer and the Mobility Edge platform. The CT60 mobile computer has a longer product lifecycle that spans four versions of AndroidTM, maximizing customer investment and lowering the total cost of ownership. Additionally, it is validated by Android Workplace Recommended, a Google-led program that assists businesses in confidently selecting, deploying, and managing the Android devices and services that are best suited to their enterprise needs.
Features:
- ATEX Zone 2/22
- Class I, II Division II
- Class III
- IECEx
- FCC certified
- Android 8.1 (O), upgradable through Android R
- 2.2 GHz Qualcomm Snapdragon 660 octa-core
- 4G LTE modem
- N6603SR Slim Imager Engines
- 13-megapixel color camera
- WWAN network
- NCNR agreement
- Non-Incendive
- Push to Talk (PTT)
- IP67 and IP65 standards
Specifications:
| SYSTEM ARCHITECTURE | |
| Processor: | 2.2 GHz Qualcomm Snapdragon 660 octa-core |
| Operating System: | Android 8.1 (O), upgradable through Android R |
| Memory: | 3 GB/4 GB DDR4 RAM, 32 GB Flash |
| Display: | 118 mm (4.7 in) High Definition (1280 x 720) |
| bright color LCD with backlight, outdoor readable, | |
| optically bonded to touch panel, oleophobic fingerprint rejection | |
| Touch Panel: | Rugged multi-touch capacitive touch |
| panel, optically bonded for extra durability and better | |
| sunlight readability. Automatic switching between glove | |
| and finger modes. Water droplet rejection. Visibility of | |
| the screen in landscape mode with polarizing glasses | |
| in sunny environments. Covered with Gorilla Glass 5 | |
| for increased resistance to drops. (Gorilla Glass 5 is | |
| offered only in models with N6703SR or N6703HD scan engines) | |
| Keypad: | On-screen customizable keypad, dual-action side scan triggers, volume up/down, |
| camera, power button | |
| Audio: | Speaker, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless |
| headset support | |
| I/O Ports: | Durable, custom IO connector |
| Camera: | 13-megapixel color camera, 4K video with image stabilization, and advanced software features for |
| enhanced exposure control | |
| Sensors: | Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor |
| Storage Expansion: | User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant) |

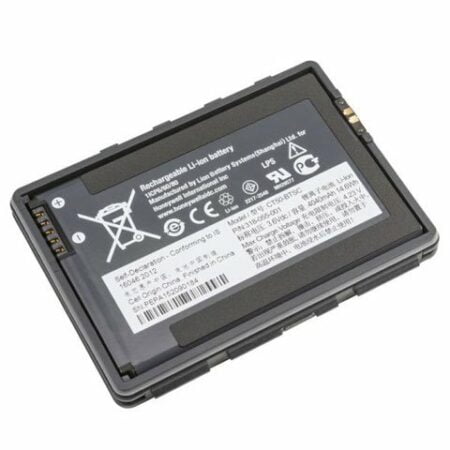

| Battery: | Li-Ion, 3.6 V, 4040 mAh with integrated battery diagnostics. Warm swap capability that allows 1 minute |
| to change batteries without loss of application work flow. (Warm swapping is offered only in models with | |
| N6703SR or N6703HD scan engines) | |
| Hours of Operation: | 12+ hours |
| Decode Capabilities: | Honeywell N6603SR, N6703SR, or N6703HD Slim Imager Engines (1D/2D barcode |
| symbologies), Honeywell SDKs for Android | |
| Application Software: | Honeywell Utilities and Demos |
| Warranty: | One-year factory warranty |
| WIRELESS CONNECTIVITY | |
| Cellular Radio | |
| LTE Advanced Support | Supports VoLTE |
| Up to 400 Mbps CAT13 LTE downlink | |
| Up to 75 Mbps CAT5 LTE uplink | |
| • LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, | |
| 20, 25, 26, 28, 29 | |
| • LTE (TDD) – Bands 38, 39, 40, 41 | |
| UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19 | |
| GSM/GPRS/EDGE Quad-Band | |
| (850/900/1800/1900 MHz) | |
| 1xRTT/EV-DO – Bands BC0, BC1, BC10 (B26 BW) | |
| WLAN: | IEEE 802.11 a/b/g/n/ac; Wi-Fi certified |
| Additional WLAN Features: | 802.11 r (802.11 k/mc – via future release) |
| WLAN Security: | OPEN, WEP, WPA/WPA2 (Personal and Enterprise) |
| Supported EAP: | TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified |
| Bluetooth: | V5.0 Bluetooth and BLE Supported |
| Bluetooth Profiles: | HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT |
| NFC: | Integrated Near Field Communication |
| VPN: | IPSec V4/L2TP, PPTP |
| Push to Talk (PTT): | Supported |
| GPS Supported Protocols: | Simultaneous GNSS Receiver Support for A-GPS, GLONASS, Qualcomm |
| Gen9 position engine, Galileo, and BeiDou | |
| MECHANICAL | |
| Dimensions: | 160 mm x 82.5 mm x 19 mm |
| (6.3 in x 3.2 in x 0.75 in) | |
| Weight: | 350 grams (12.4 oz) with battery pack |
| ENVIRONMENTAL | |
| Operating Temperature: | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature: - | -30°C to 70°C (-22°F to 158°F) |
| Humidity: | 0% to 95% relative humidity (non-condensing) |
| Drop: | 2.4 m (8 ft) to concrete at room temp per MIL -STD 810G; |
| 1.5 m (5 ft) to concrete at -10ºC to 50ºC | |
| (14ºF to 122ºF) temperature range; 1.2 m (4 ft) to concrete down to -20ºC (-4ºF) | |
| Tumble: | Exceeds 1,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification |
| ESD: | ±15 kV Air and ±8 kV Direct |
| Environmental Sealing: | Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion |
| ADDITIONAL CERTIFICATIONS AND APPROVALS | |
| US/Canada: | Class 1 Div 2, Groups, A, B, C, and D |
| Class 2 Div 2, Groups F, G | |
| Class 3 | |
| T4A, -20°C < Tamb <50°C | |
| ATEX: | Ex II 3G Ex ic op is IIC T4 Gc IP64 |
| Ex II 3D Ex ic op is IIIB T135°C Dc IP64 | |
| -20°C<Tamb<50°C | |
| IEC Ex: | Ex ic IIC T4 Gc IP64 |
| Ex ic IIIB T135°C Dc IP64 | |
| -20°C <Tamb < 50°C | |
| *Available on specific models with the H6603SR scan engine, Gorilla Glass 3, and no warm swap battery |
Certifications:
- FCC Certificate
- GCF Certificate
- IEC CB Safety Certificate
- IEC LED Certificate
- EU Declaration of Conformity 1
- EU Declaration of Conformity 2
- Bluetooth SIG Certificate
Resources:
- Data Sheet
- Quick Start Guide – Android 7 OS
- Quick Start Guide – Android 8 OS
- User Guide – Android 7 OS
- Android Network and Security User Guide
- Enterprise Provisioner and Staging Hub Server Network Security Guide
- DX1, DX2, DX4 Computer, and Battery Cup Installation Instruction
- Enterprise TE User Guide – Android 6
- Launcher for Android User Guide
- Power Tools – Android 7
- Accessory Catalog
- BTSC Battery Pack Information
- Desktop and Charge-Only Compliance Insert
- Dual Base Compliance Insert
- Quad Base Compliance Insert
- HAC Device Listings
- Mobile Computer Regulatory Sheet
